Features:

• 2 Channel output DC power supply
• Maximum 80 W total output power
• Maximum 35 V or max. 2 A per output
• Data acquisition with 10 sample/s
• Linear design allows operation with minimum residual ripple and noise
• High readback accuracy with integrated statistics
• FlexPower to get the maximum power at various operating points
• USB, Ethernet interfaces (Wireless LAN and digital trigger I/O optional)
• Rack mountable and color coded

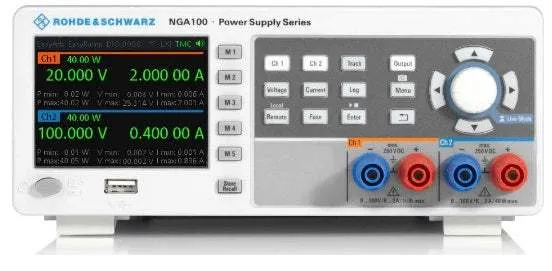

The Rohde & Schwarz NGA100 power supplies are linear, compact and easy to use. All models have excellent readback accuracy with a low-current range for demanding measurements.

Features such as data logging, arbitrary waveforms, built-in statistics and remote sensing make the instruments ideal for various bench applications. Equipped with a number of different remote interfaces, including USB and Ethernet, the R&S NGA100 power supplies are also great for automated tests.

The channel fusion feature extends voltage and current range. Get up to 200 V with the R&S NGA142 in serial mode and up to 12 A with the R&S NGA102 in parallel mode.

Advanced protection functions keep devices connected and power supplies safe.

*The image is a representation of selection. See specifications for product details.
