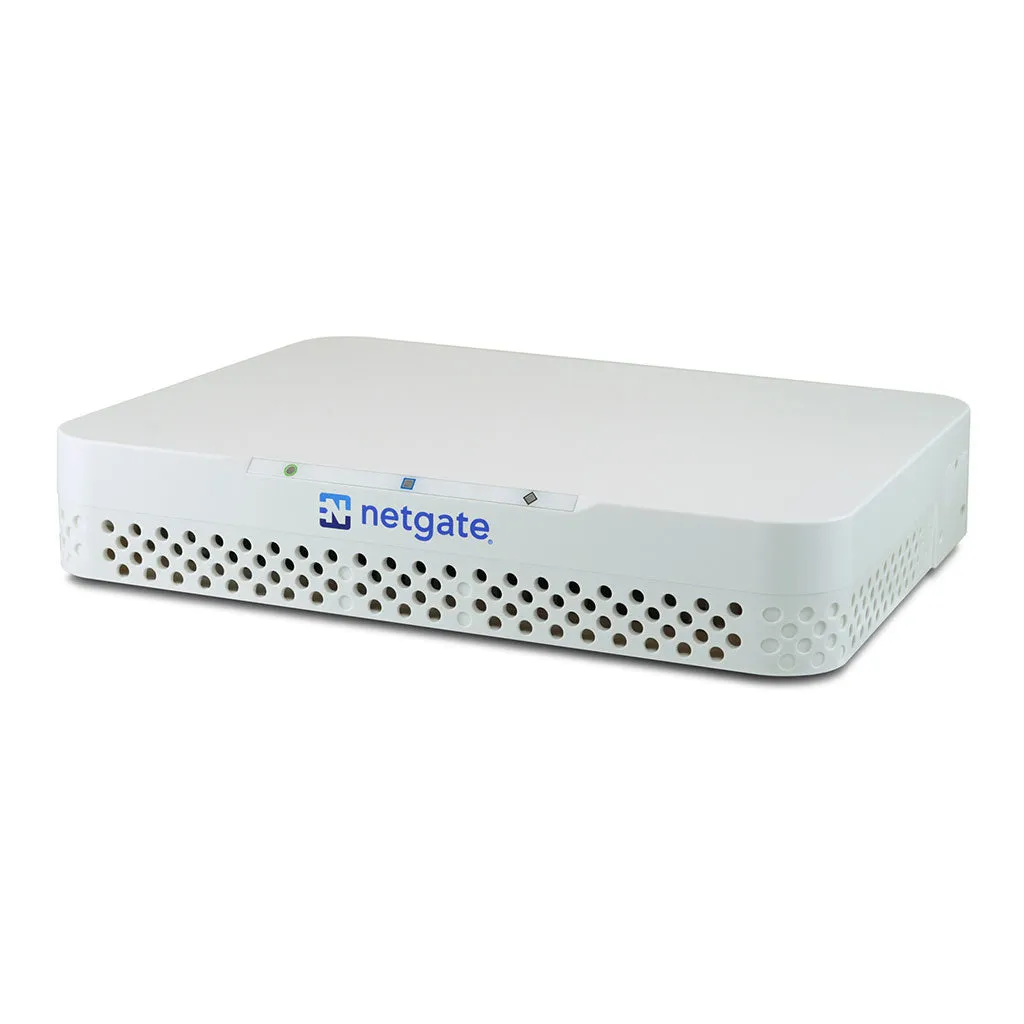

The Netgate® 6100 with TNSR software is a high-performance, secure router that supports high-speed throughput with management flexibility for service providers, virtual or branch offices, edge to cloud applications and all businesses who need multi-gigabit throughput.
SECURE FAST ROUTING
This system combines the power of TNSR with an Intel® C3558 Quad Core CPU with integrated QuickAssist & AES-NI, and 8 GB of memory to significantly improves encrypted throughput and increases RAM performance by up to 50%. The Netgate 6100 with TNSR delivers over 18 Gbps of L3 routing across 8 Independent 1 GbE, 4 2.5 GbE, and 2 10 GbE Flexible WAN/LAN ports.
FLEXIBLE MANAGEMENT
TNSR software configuration through both CLI and RESTCONF API enables the Netgate 6100 to be managed by IT automation platforms like Ansible®, SaltStack®, Puppet®, or Chef™ - which go beyond traditional GUI management techniques to enable both speed and multi-instance management orchestration at scale, along with low-cost deployment and automated operation.
AFFORDABLE & SILENT
The Netgate 6100 with TNSR is ideal for those with high-speed 10 GbE routing requirements on a limited budget. The compact form factor, low power draw, and silent operation allows it to run unnoticed when placed on a desktop, , or .
WHY TNSR?
Our page has additional information about TNSR routing and security , , and
, , and are also available to help you get started with your TNSR journey.
HARDWARE SPECIFICATION
|
CPU |
Intel® Atom® C3558 4-core @ 2.2 GHz (Denverton family) with QAT and AES-NI |
|
CPU Cores |
4 Cores |
|
Physical Network I/O ports |

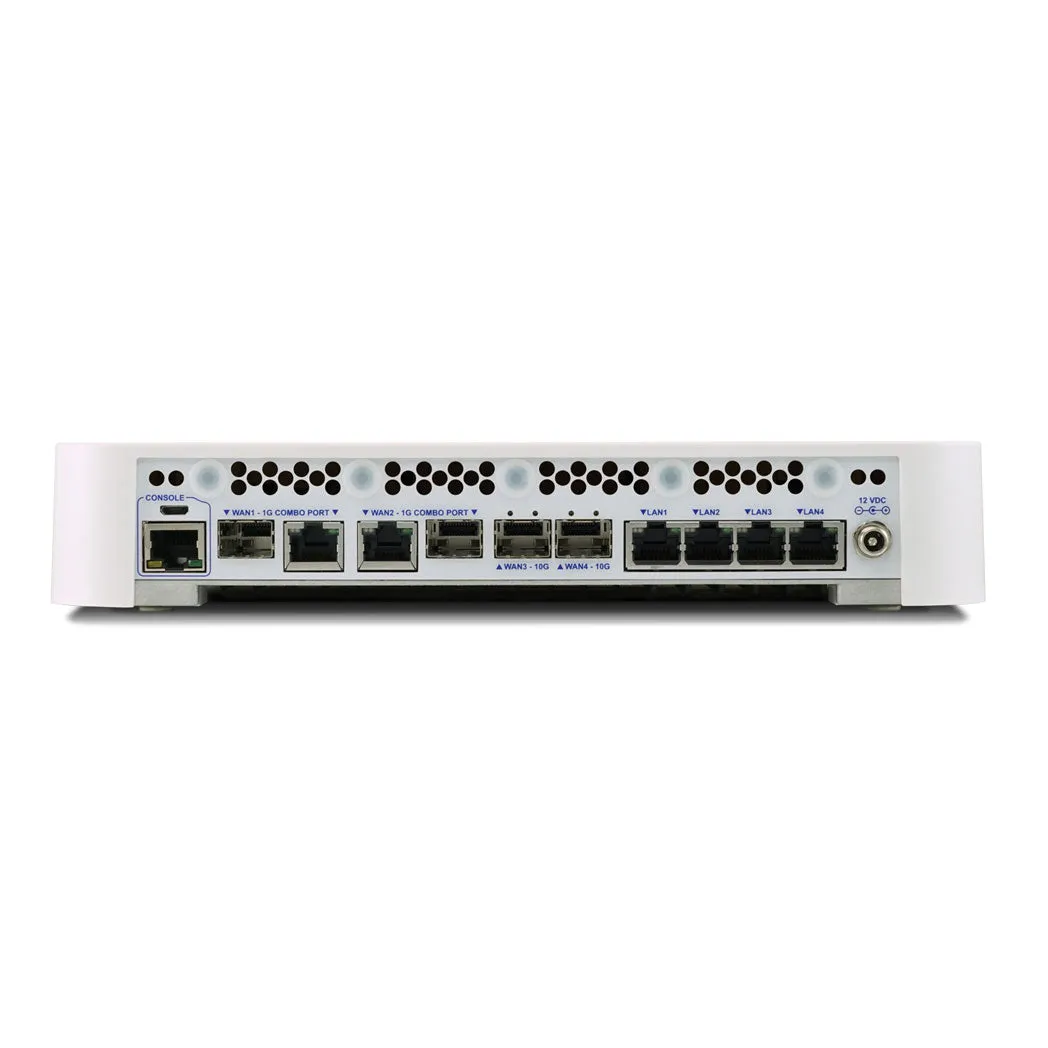

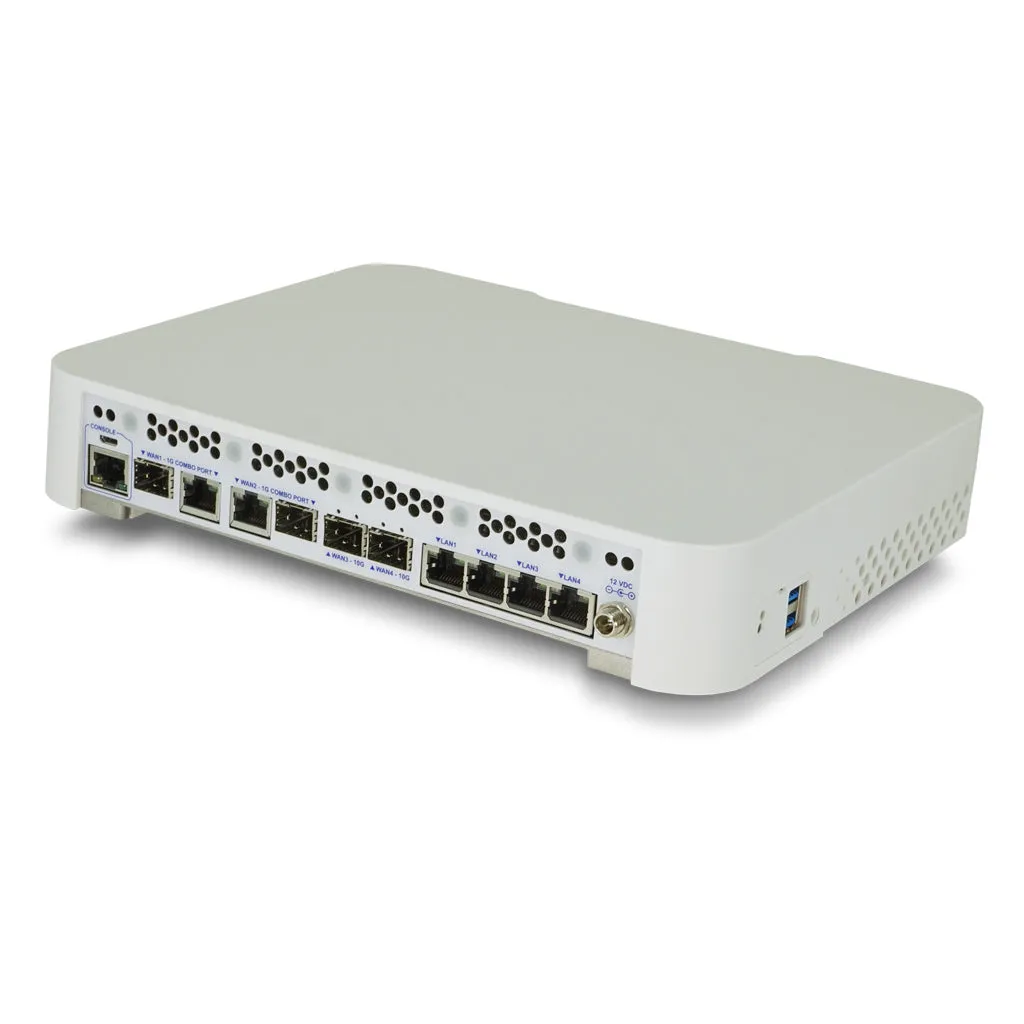

(2) 10 Gbps SFP cage ports (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) Combo ports (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet ports |
|
Storage |
128GB NVMe M.2 SSD - Netgate 6100 ("Max" configuration) |
|
Memory |
8 GB DDR4 w/o ECC, single channel |
|
Physical Expansion Card Slots |

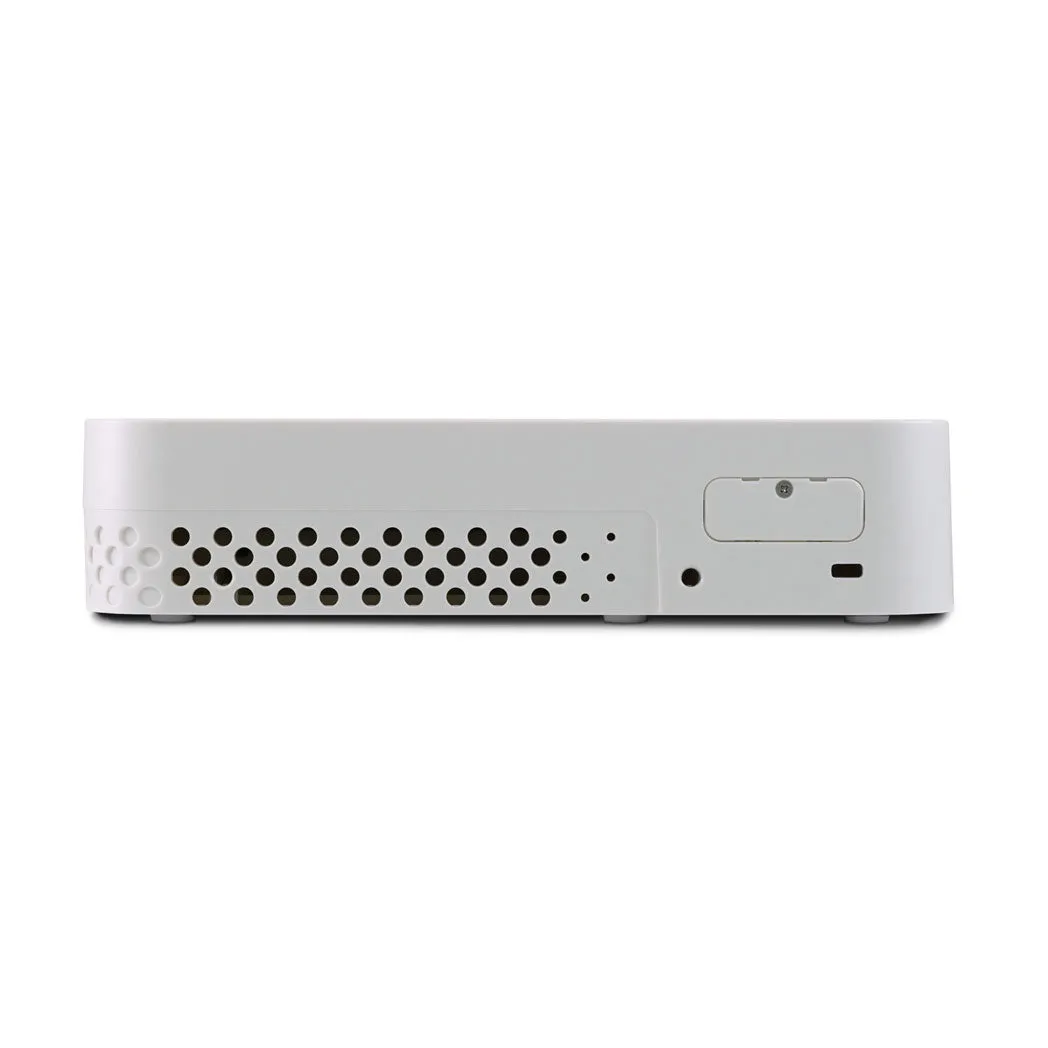

2x m.2 (Key-B slot) each with dual-SIM per slot (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0) (SIM slots are located on right rear when viewing system from front panel) |
|
1x Mini-PCie Slot (Wi-Fi Only) |
|
|
Console Port |
1 x auto-detect console port: "Cisco pinout" RJ45 micro-USB (micro-USB cable included with each system) |
|
USB Ports |

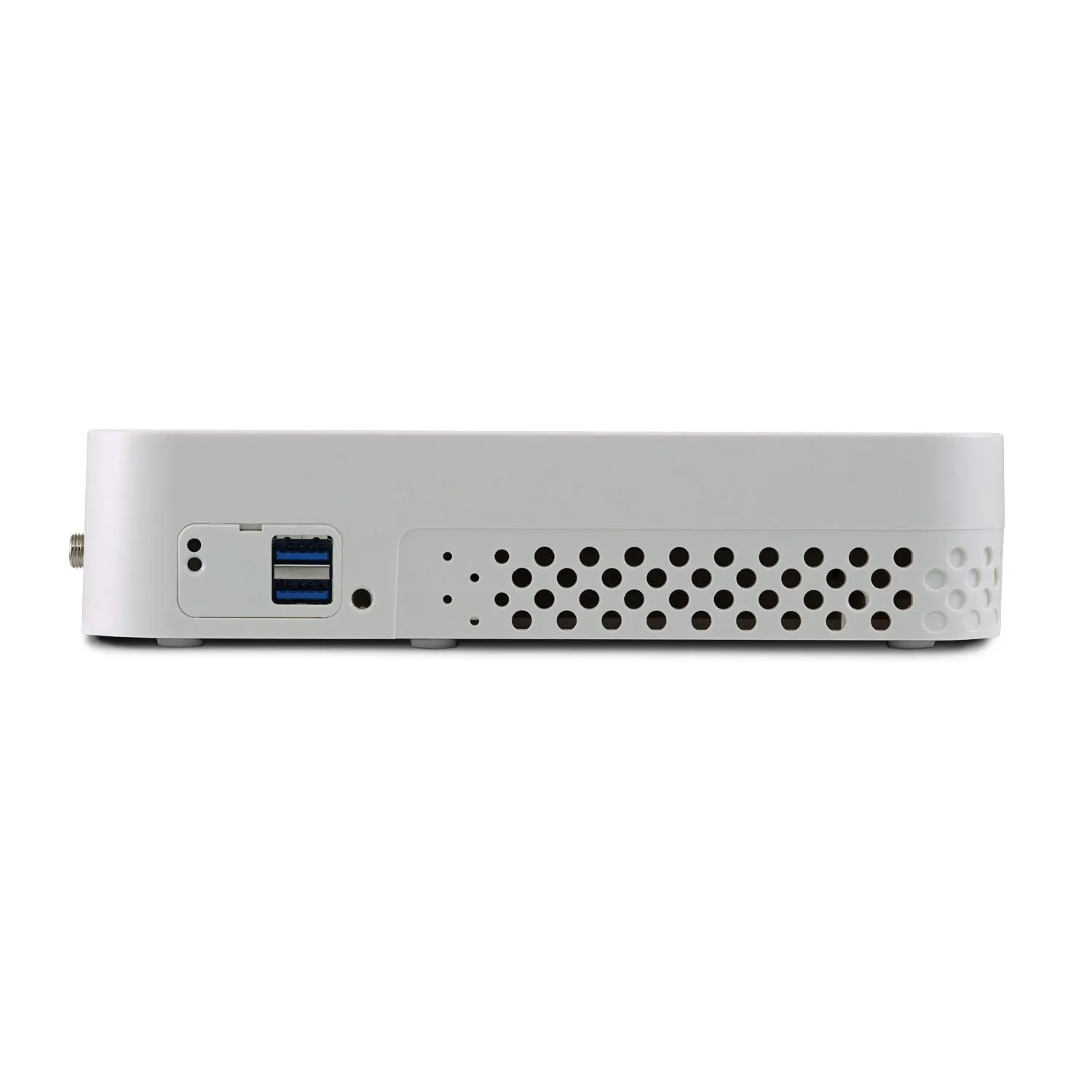

2 x USB 3.0 jacks (USB-A female) Located on left side rear when viewing system from front panel |
|
LED |

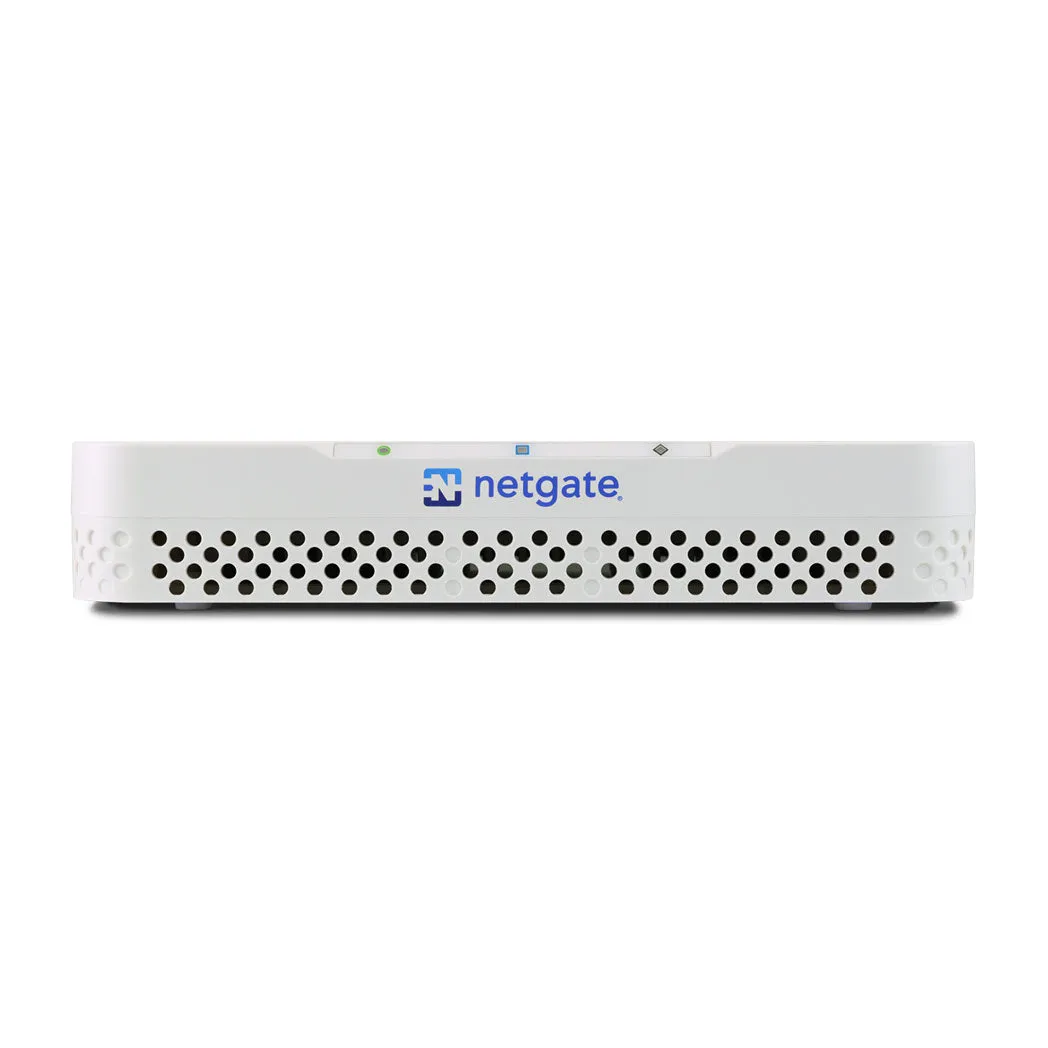

3x 4-color LEDs (RGB amber) Software / bootloader controllable via Microchip MCU |
|
Enclosure |
Desktop - Aluminum, plastic, and steel enclosure. 10 x 7.88 x 1.88 inches 254 x 200 x 47.63 mm |
|
Mounting |
Optional or mount kit |
|
Cooling |
Passive |
|
Power |
External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included - US Power Cord: NEMA 1-15-P to IEC320-C7 - UK Power Cord: BS 1363 to IEC320-C7 - EU Power Cord: CEE7/16 to IEC320-C7 - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7 |
|
Environmental |
0°C (32°F) to 40°C (104°F) - ambient |
|
Certifications |
FCC (Class B), IEC / CE, CB, RoHS, UL, RCM, UKCA |
AVAILABILITY
In addition to deployment on the Netgate 6100, TNSR software is also available on the Netgate , , , , as a for deployment on 3rd party hardware, or as a VM, or in the public cloud on and .
The Netgate 6100 with TNSR software includes the first year of the with 24x7x365 TAC PRO Technical Assistance from our knowledgeable and highly-rated Netgate Global Support team.
ADDITIONAL INFORMATION
- .
- Not PoE compatible
- Ships with your choice of Australian, UK, EU or USA power cord. Easily changed by purchasing compatible AC power cord with IEC320-C7 (2 PIN) plug ().
- Optional or kit available
- Note: This system uses the case as a heatsink, please be aware it may feel warm when in use.
SUPPORT INFORMATION
- TNSR software subscription with Netgate Global Support technical assistance (TAC Pro - 24 hour SLA) is included for the first year. Upgrade to TAC Enterprise for the fastest 4 hour SLA. All support plans offer 24x7x365 availability and a friendly team to assist you.
- For support assistance, .
- For service level descriptions, .
- Netgate Global Support FAQ is .
- Help is always available from Netgate Community members on our forum .
WARRANTY INFORMATION
- One-year manufacturer's hardware warranty information is .
- Extended warranties for US customers are available from . More information on their offer and warranty policy can be viewed .
- . Netgate does not sell seconds or returns. An open box fee may apply.
- All specifications subject to change without notice.
