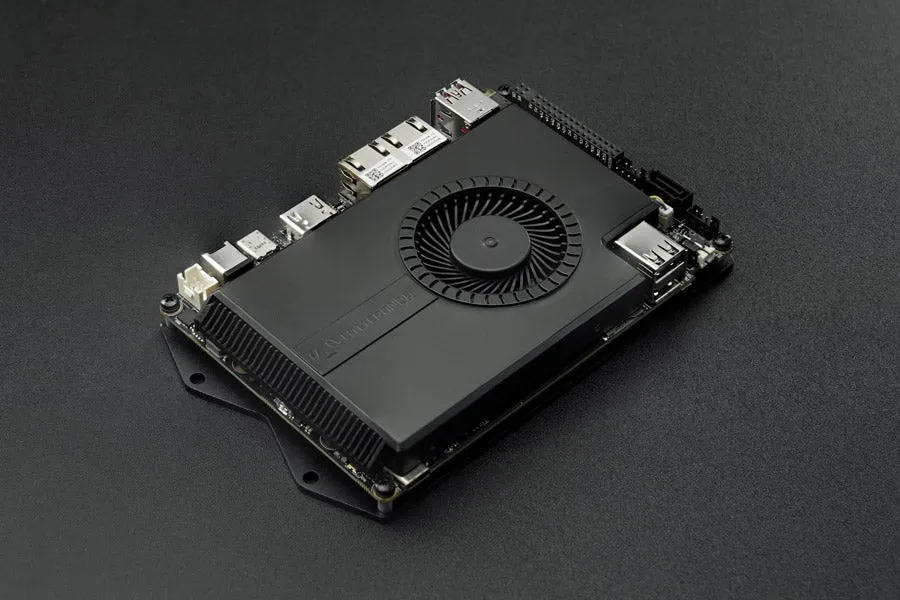

Name: LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM/500GB SSD and WiFi 6E Module)
SKU: 467274

Product Details ＋

Comparison Tables

SKU	Model	Processor	Memory	Storage	Wireless
	LattePanda Sigma	Intel Core i5-1340P	16GB LPDDR5- 6400	/	/
	LattePanda Sigma (with 500GB SSD and WiFi 6E Module)	Intel Core i5-1340P	16GB LPDDR5- 6400	500GB WD SN770 PCIe 4.0 x4 SSD	Intel AX211 WiFi 6E Module

Features:

Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.

Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.

High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.

Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.

User-friendly Interface Layout: plug and play with ease

Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.

Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems

Applications:

Specification:

Processor

CPU: Intel® Core™ i5-1340P

Cores / Threads: 12C(4P 8E) / 16T

Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)

L2 Cache: 12 MB

Base Power: 28 W

Graphics: Intel® Iris® Xe Graphics

Max Dynamic Frequency: 1.45 GHz

Execution Units: 80

Co-processor: Microchip® ATmega32U4-MU

Memory

Technology: Dual-Channel LPDDR5-6400

Capacity: 16GB

Storage

Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive

Wireless

Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)

Display

HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz

USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)

Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz

External I/O

USB Type-A: 2 x USB2.0 (480Mbps)
2 x USB3.2 Gen 2 (10Gbps)

USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)

HDMI: HDMI 2.1

Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)

Power: 5.5mm x 2.5mm DC Jack

Audio: 3.5mm Microphone Headphone Combo Connector

Sim Card: Micro Sim Card Slot

Internal I/O

USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps

Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control

SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector

Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED

Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in

COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485

GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins

eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes

Expansion Slot

M.2 M Key: Type 2280, Supports PCIe 3.0 x4
Type 2280, Supports PCIe 4.0 x4

M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM

M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio

Security

TPM: Built-in TPM (2.0)

Power

Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V
USB Type C: PD 20V

Power Adapter: 19V DC, 4.74A, 90W

RTC Battery: CR1220 Battery Holder: 3V
1.27mm Pitch 2-Pin Connector: 3V

Operating System

Microsoft Windows: Windows 10, Windows 11

Linux: Ubuntu 22.04

Environment

Operating Temperature: 0~45

Relative Humidity: 0%~80%

Dimension

Form Factor: 3.5", 146 x 102 mm

Documents:

Documentation

Tutorials

Download

Product Includes:

LattePanda Sigma x1

Active Cooling Fan (Assembled) x1

Metal Protective Bottom Plate x1

Thermal Pads for M.2 SSD x2

Power Adapter with DC cable x1

AC Cable(EU & US & UK) for power adapter x3

RTC Battery (Assembledx 1

User Manual x 1

M.2 NVMe SSD 500GB x1

M.2 Intel WiFi 6E Module x1

WiFi/BT Antenna x2
