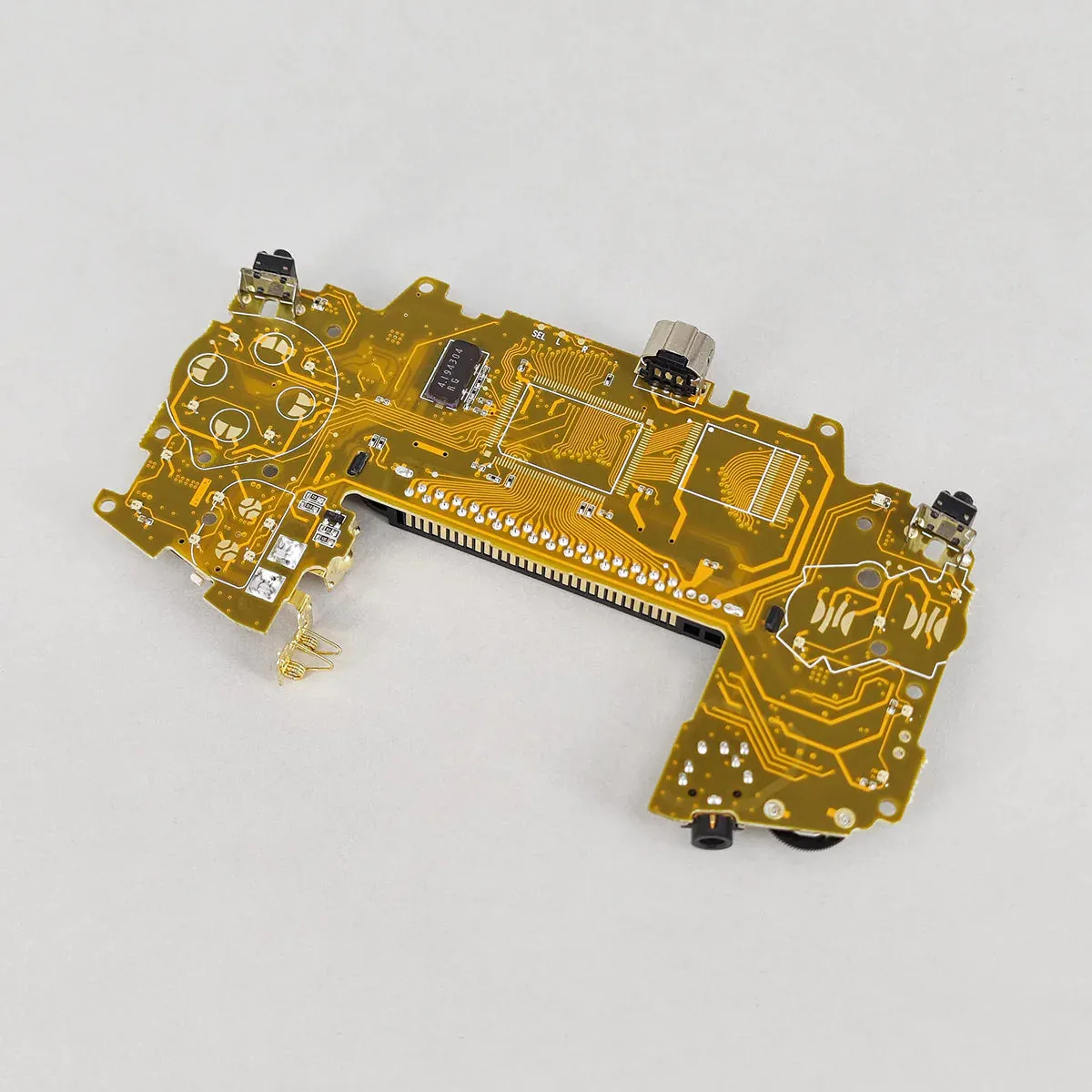

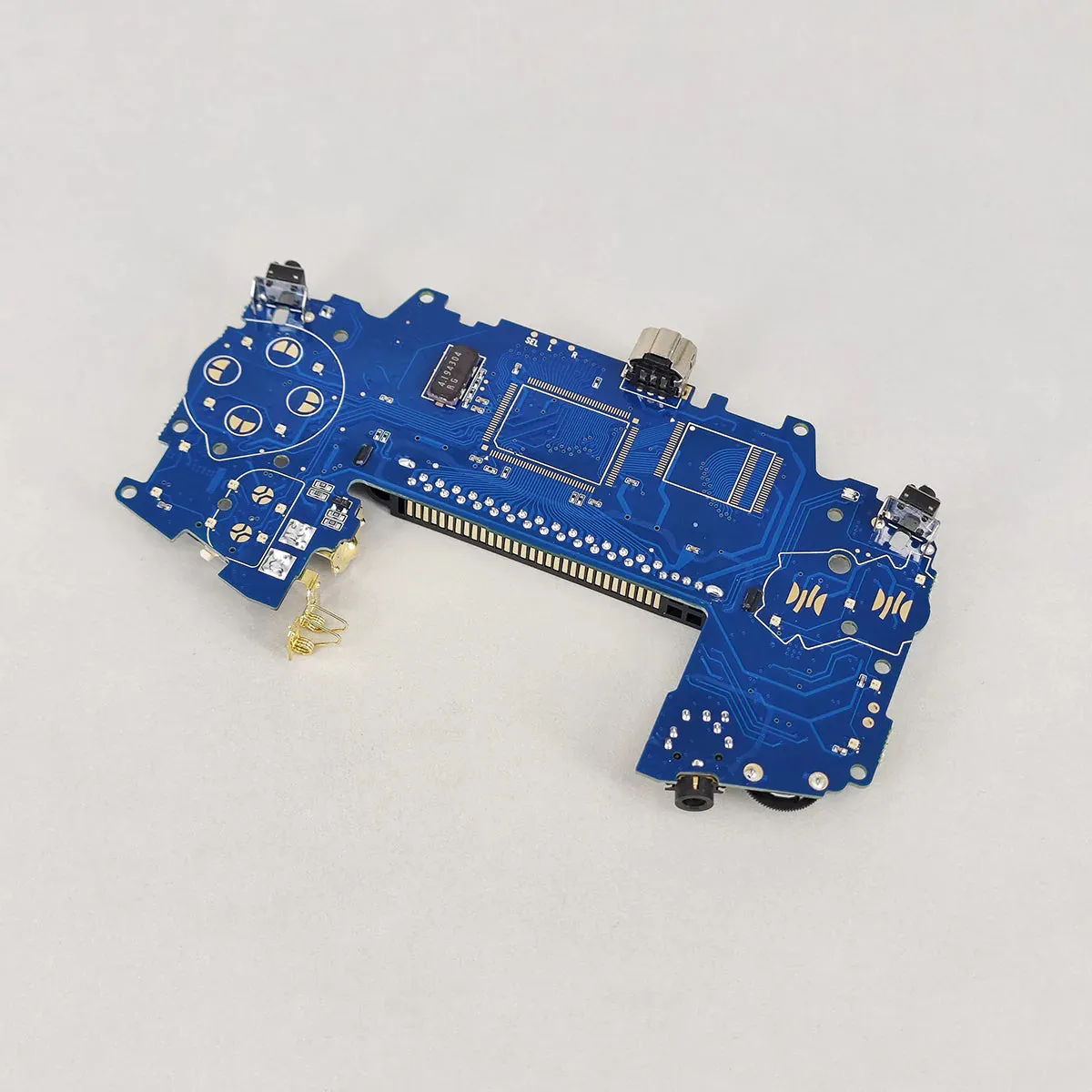

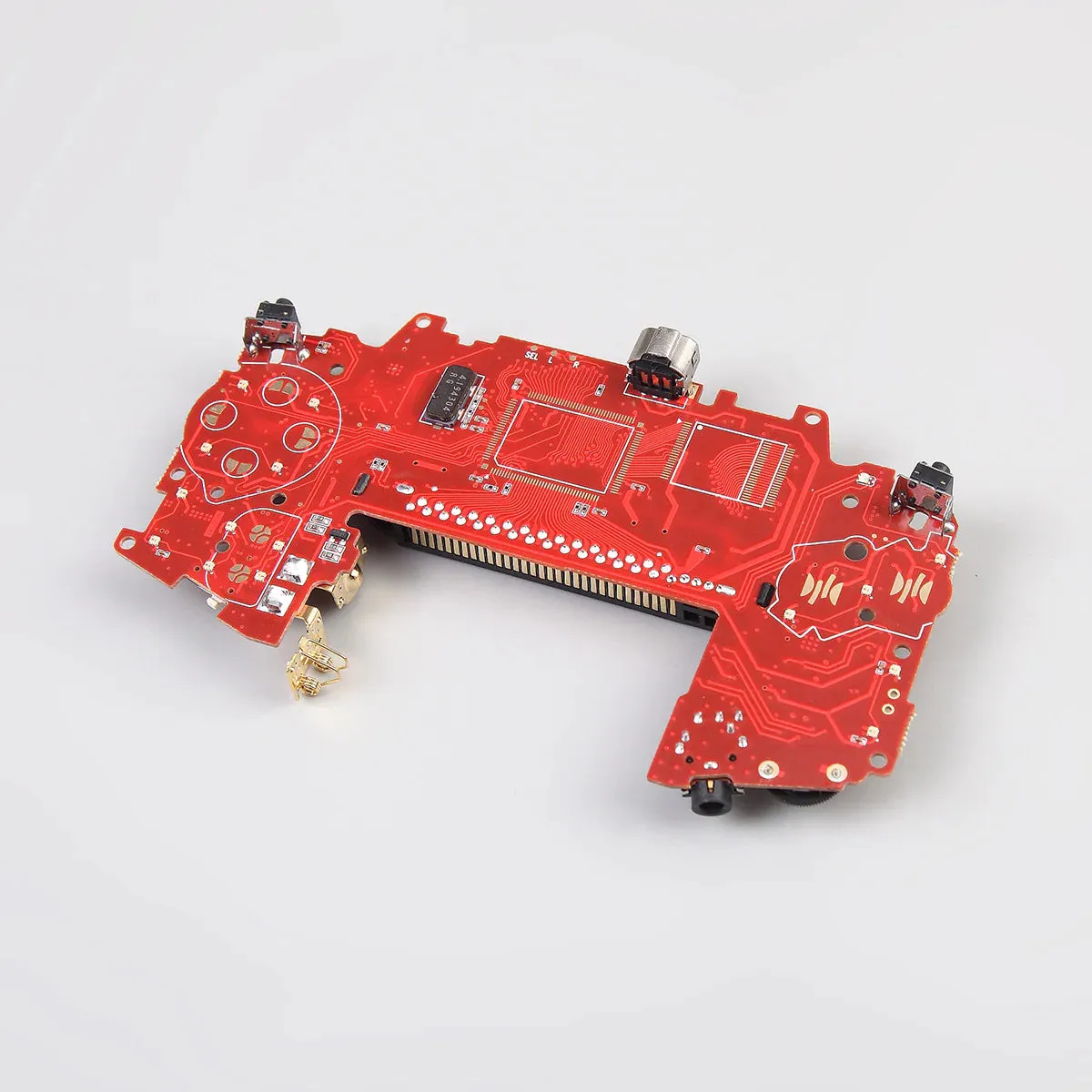

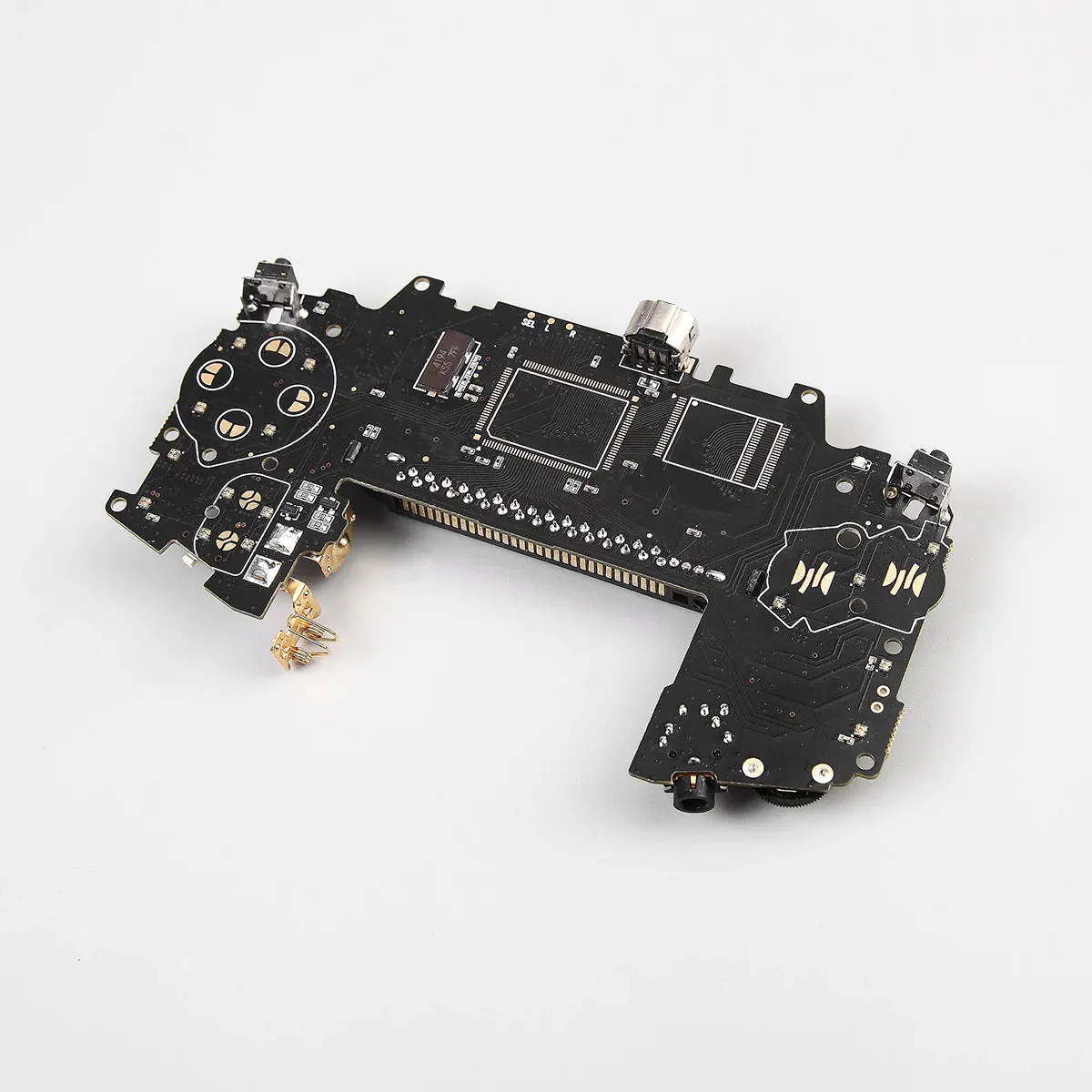

Introducing a Replacement Motherboard for Game Boy Advance from FunnyPlaying. With this motherboard replacement, you can transplant your existing CPU and RAM to a brand new motherboard. This upgraded board comes with added features like a standby function and LED light, making it the perfect replacement to ensure reliability and longevity
FEATURES:
- Complete except for the OEM CPU and RAM chips (you can harvest your own from a donor board or buy a replacement )
- 32 Pin Design
- Redesigned motherboard
- New built-in Audio Amp
- Built In RGB power LED
- L, R, and Select breakout points
- Updated Power Switch
INCLUDED:
- 1x Upgraded Motherboard
- 1x Right Gold plated battery contacts
PAIRS WELL WITH:
DOCUMENTATION:
-
for CPU and memory chips.
NOTES:
- Power increase due to audio amplifier. Recommended with 8 Ohms 1W speaker.
- Compatibility with HDMI kits has not been confirmed.

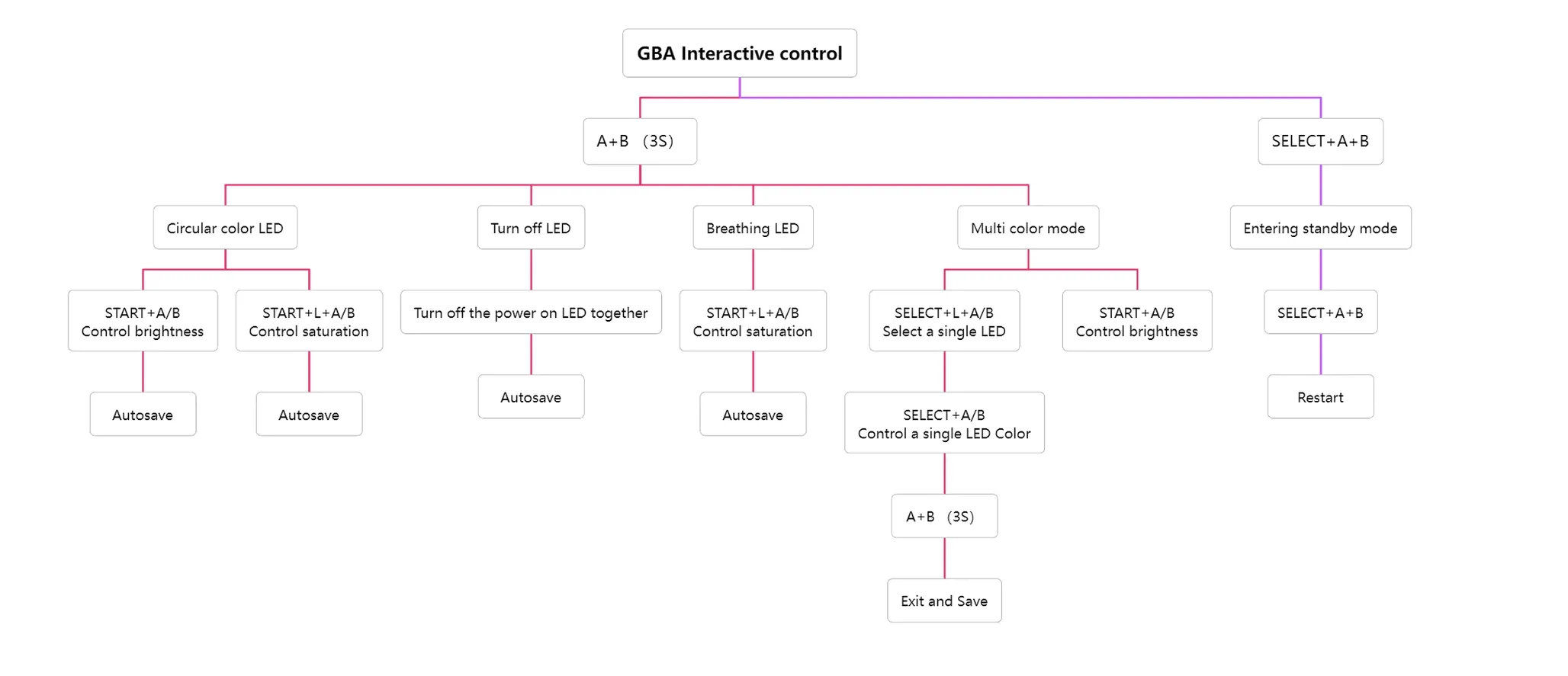

FUNCTIONS
- Press and hold the A B Four second to change the LED light mode.
- Press and hold the SEL A/B to change the LED brightness.
- Press and hold the STA A/B to change the LED light color.
- Press and hold the STA L A/B to change the LED light Color saturation.
- Press and hold the SEL A B Enter/Out standby mode. The core still works, and only the peripheral hardware is powered off (Only applicable to original carts)
WARNINGS:
- This mod requires extensive soldering experience and should not be attempted by a novice. The CPU and RAM are not included and must be transferred from an original GBA motherboard. Due to this, refunds/returns are not accepted on this product.
